HB R1001 R1002 R1003 Upgrade Modification Parts-Independent Light Board

Description:

Product Name: Independent Light Board

Applicable Model: R1001 R1002 R1003 R1011 R1012 R1013 R1014

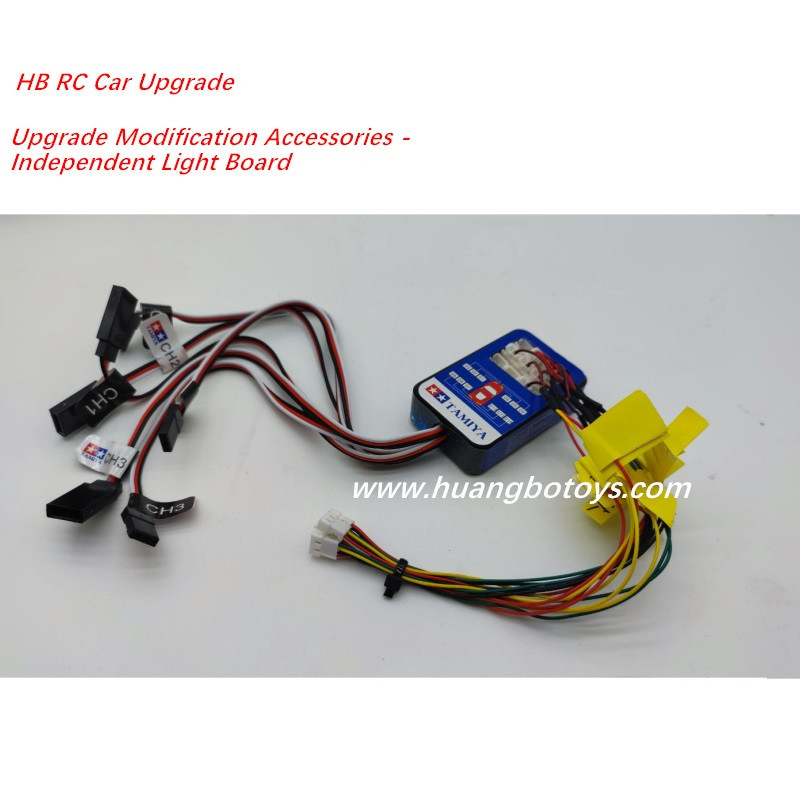

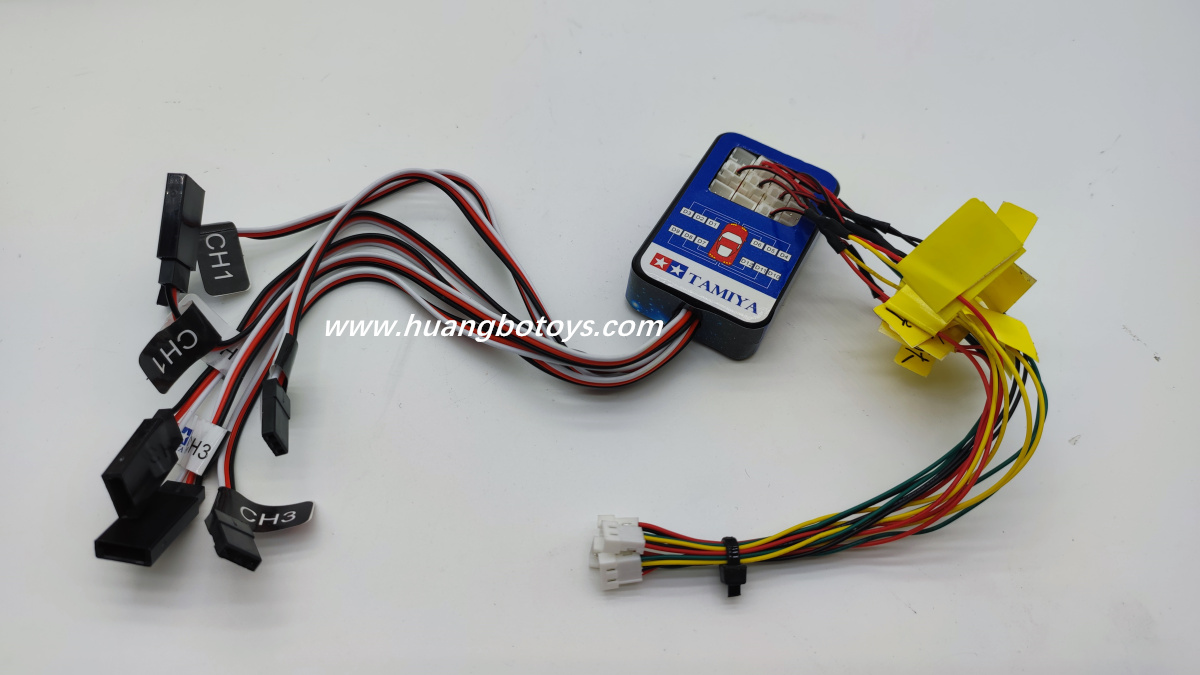

Quantity: 1Set, as picture

Product Introduction:

This independent light board is not necessary for the original receiver and the original remote control,

because the original car itself has the same light control function.

But when you modify and upgrade other remote controls, if some light control functions are missing, you can buy it.

How to install the light board？

1. There are male and female connectors CH1, CH2 and CH3 on the light control.

Female connector wiring:

Female connector CH1 connects to receiver CH1

Female connector CH2 connects to receiver CH2

Female connector CH3 connects to receiver third channel

(Note that the white wire is on the inside)

2. Male connector wiring:

Male connector CH1 connects to steering servo (Note that white wire matches white wire)

Male connector CH2 connects to ESC (Note that white wire matches white wire)

3. White light plug

The white light plug can be plugged in randomly first, and then tested. If the front and rear lights and turn signals are found to be wrong, just swap the plugs.

First test the front and rear lights, and then test the left and right lights.

After installation, the left and right steering are linked. Turn the wheel and the turn signal will light up.

Press the throttle, the headlights will light up, push the throttle back, and the reverse lights will light up.

Press the corresponding third channel button on the remote control to turn the light on and off

After modifying the light panel, the color of the lights is the same as the original car.
